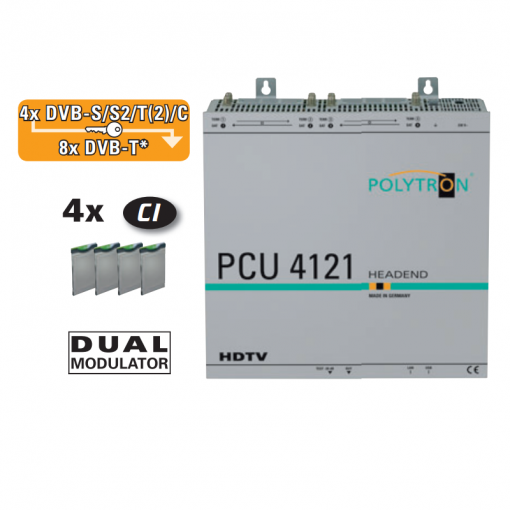

POLYTRON PCU 4121 kompaktná univerzálna skupinová stanica
PCU 4121 pozostáva z trojitých tunerov, ktoré prevádzajú DVB-S(2) / DVB-T(2) / DVB-C signál na kanály DVB-T.

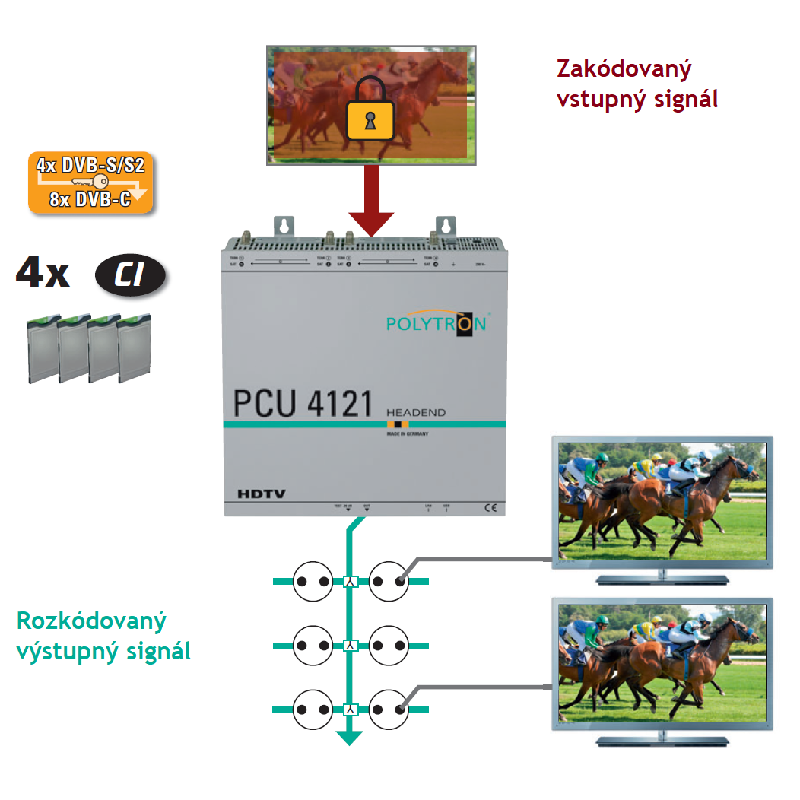

Každý zo štyroch vstupov je vybavený rozhraním CI na dekódovanie šifrovaných signálov. Duálne modulátory môžu rozdeliť vybrané kanály na dva výstupné kanály, aby sa predišlo problémom so šírkou pásma. Koncová stanica sa dá rýchlo a ľahko programovať cez rozhranie USB.
Funkcie ako LCN, NIT, TSP a LAN administrácia dopĺňajú praktickú funkčnosť.
Vysoko kvalitné komponenty a interný vývoj a výroba „Made in Germany“ vám umožňujú vybudovať spoľahlivé a odolné prijímacie systémy so stanicami PCU 4121 od firmy POLYTRON.
- Trojité tunery: vstupný signál ľubovoľne voliteľný
- 4 x CI sloty pre centrálne dešifrovanie
- MPEG 2, MPEG 4 a H.265 / HEVC kompatibilé
- výstupný signál prepínateľný zmenou firmvéru DVB-C (QAM) alebo DVB-T (COFDM)
- výstupné kanály nastaviteľné v rozsahu 112-862 MHz
- spracovanie susedných kanálov
- útlm úrovne 0-12 dB
- vstavaný zdroj pre napájanie LNB
- ventilátory riadené teplotou
- duálne modulátory
- obsah transpondéra môže byť vymazaný TSP
- logické číslovanie kanálov LCN
- kompatibilné s tabuľkou sieťových informácií NIT
- zabudovaný LAN port
- Made in Germany
Typ / Type |
PCU 4121
|
Artikel-Nr. / Article no. |
5552160
|
Eingänge / Inputs |
4
|
CI-Schnittstellen / CI slots |
4
|
Eingangspegel / Input level |
50…80 dBµV
|
Demodulator | |
DVB-S/S2 | |
SR DVB-S / QPSK |
1…45 MS/s
|
SR DVB-S2 / QPSK |
1…45 MS/s
|
SR DVB-S2 / 8PSK |
1…45 MS/s
|
Modulation |
8PSK / QPSK
|
CR DVB-S / QPSK |
1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
|
CR DVB-S2 / 8PSK |
3/5, 2/3, 3/4, 5/6, 8/9, 9/10
|
Roll off |
0.35, 0.25, 0.20
|
DVB-T | |
Modulation |
QPSK, 16QAM, 64QAM
|
FFT |
2K, 8K
|
Bandbreite / Channel bandwidth |
7, 8 MHz
|
Code rate |
1/2, 2/3, 3/4, 5/6, 7/8
|
Guard interval |
1/4, 1/8, 1/16, 1/32
|
DVB-T2 | |
Modulation |
QPSK, 16QAM, 64QAM, 256QAM
|
FFT |
1K, 2K, 4K, 8K, 16K, 32K
|
Bandbreite / Channel bandwidth |
7, 8 MHz
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
|
Guard interval |
1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
|
DVB-C | |
Modulation |
16QAM, 32QAM, 64QAM, 128QAM, 256QAM
|
Symbol rate |
7,2 MS/s
|
Bandbreite / Channel bandwidth |
6, 7, 8 MHz
|
Ausgangsmodulation im Auslieferungszustand |
DVB-T
|
Output modulation ex works |
umprogrammierbar auf / programmable to DVB-C
|
Ausgangskanäle / Output channels |
4 + 4
|
Frequenzbereich / Frequency range |
112…862 MHz
|
Signal constellation |
QPSK, 16, 32, 64 QAM
|
Symbol rate |
/
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8
|
Bandbreite / Bandwidth |
7 / 8 MHz
|
Anzahl der Träger / Number of carriers |
2K
|
Ausgangspegel / Output level |
90 dBµV
|
Regelbare Dämpfung je Kanal / Channel attenuation |
0…12 dB
|
MER |
typ. 38 dB
|
Leistungsaufnahme / Power consumption |
max. 35 W
|
Spannungsversorgung / Operating voltage |
180…265 V, 50/60 Hz
|
Maße (B x H x T) / Dimensions (W x H x D) |
331 x 328 x 103 mm
|
